Create a new Assembly

Introduction to Assembly

Task 1. Create a new Assembly

1. Start Pro/ENGINEER Wildfire 4.0 Tryout Edition if necessary.

2. If Pro/ENGINEER is already running, close all windows then remove all objects from session using File > Erase > Not Displayed...

3. File > Set Working Directory... , and browse to HANDS-ON_WF4\06-ASSEMBLY.

4. Click New  icon from the main toolbar.

5. In the New dialog box, select Assembly radio button and type EXAMPLE.

6. Click OK from the dialog box.



   Default templates are used when a new part or assembly is created.  The default template is an initial design model that contains default features, layers, views, parameters and units.

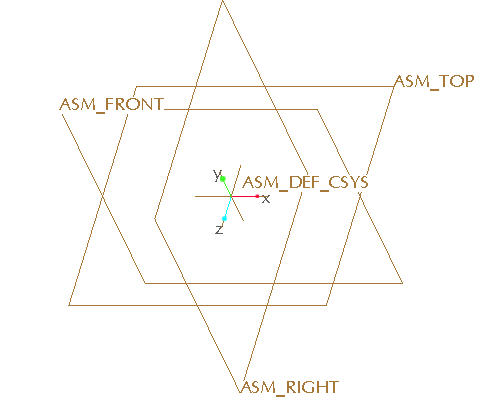

7. The new assembly will show three default planes to work from, a default coordinate system showing the assemblies 0,0,0 location, and a spin center for the model.
