Task 10. Change the Appearance of the model
|
|
Hide the datum and sketch feature display and change the default gray color to clean up the model. |
-
Right click on FRONT-SECTION from the model tree and select Hide.
-
Click View from the pull down at the top of the window and select
Color and Appearance from the drop down menu. -
From the Appearance Editor dialog box, select any non-transparent color.
-
Click Apply from the Assignment section in the dialog box.
-
Select Close at the bottom of the Appearance Editor dialog box.
-
Click Datum Planes
, Datum Points
, Datum Axes
and Coordinate Systems

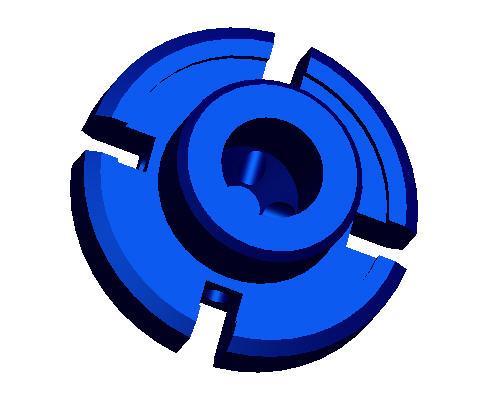

in the main toolbar to disable their display. The part will appear similar to the figure shown below.
